10m Scissor Hoist Lift Electric Manlifts

Name: 10m Scissor Hoist Lift Electric Manlifts
Brand: JESH
Price: 1 USD

Brand Name : JESH

Model Number : SS1012HM

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1Unit

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 4000 Units per month

Delivery Time : 45days

Packaging Details : Regular factory packing

Working Height : 12m

Platform Height : 10m

Drive Speed : 3.5 Km/h

Whellbase : 1.87m

Gradeability : 25%

Tire : 40.5*12.7cm

Battery : 24V/225Ah

Weight : 3045kg

Lift drive / actuation : Hydraulic

Contact Now

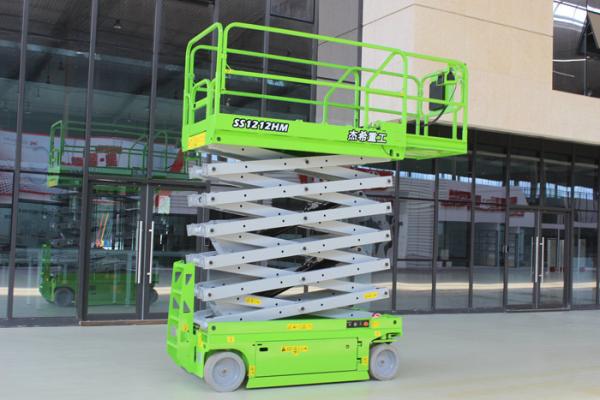

10m Scissor Hoist Lift Platform Aerial Working Electric Manlifts 320KG

Scissor Lift

Unique design of bidirectional retracting scissor arm providing better stability and comfort of machine. Slide out tray on left and right side, easy for maintenance. Forklift hole on side for loading and discharging.Unique pothole protection design with higher reliability. Orbital plane easy for cleaning. Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right side allowing stable turning. Attractive appearance integrated elements of car design.

Technical Parameters

Dimensional Data
Model	SS1012HM
working height	12m
Platform Height	10m
Machine Width	1.14m
Machine height(Railing unfolded)	2.47m
Machine height(Railing folded)	1.94m
Platform Height/Width	2.28*1.12m
Platform Extension Length	0.9m
Ground Clearance(stowed)	0.1m
Wheelbase	1.87m
Platform Capacity	320kg
Platform Capacity-Extension	120kg
Turning Radius(inside/outside)	0/2.1m
Dirive Speed(Platform Lowered)	3.5km/h
Drive Speed (Plateform Elevated)	0.8km/h
Lift/Lower Time	55/42 sec
Gradeability	25%
Maximun Working Slope	3°
Tire Size	40.5*12.7m
